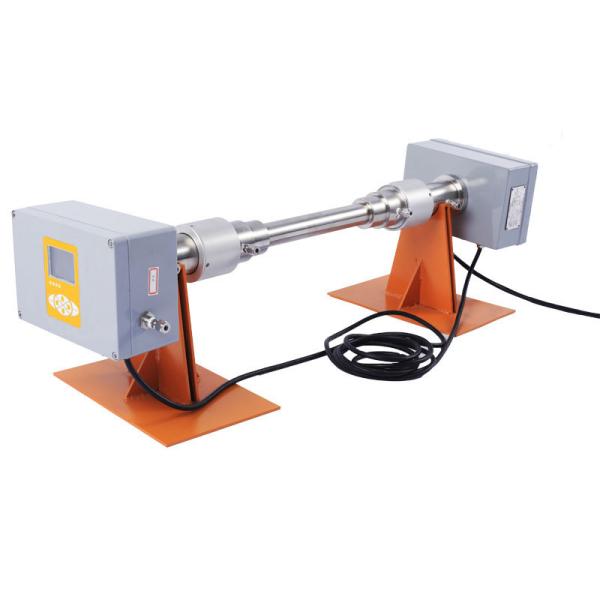

Explosion Proof Industrial Laser Gas Analyzer for Hazardous Gas Detection

Model NO. : KF200

Measurement Principle : Dlas

Power Supply : 220V AC/DC 24V(18~36V)

Ambient Temperature : -30 ~60 Degree

Storage Temperature : -40 ~80 Degree

Installation Method : in-Situ or Pass-by

Explosion-Proof : Exp Xmd Iic T5

EMC : IEC 6100-4-2, IEC 6100-4-3, IEC 6100-4-4

Protection Levels : IP65

Transport Package : Carton

Specification : 60kg

Trademark : KELISAIKE

Origin : Nanjing, China

HS Code : 9027500000

Supply Ability : 10sets Per Month

Warranty : 1 Year

Brand : Kelisaike

Customized : Both

Portable : Non Portable

Gas : O2, Co, Nh3, CO2, H2s, CH4, H2O Hc, Hfetc.

Type : Laser Gas Analyzer

Samples : US$ 13500/Piece 1 Piece(Min.Order) | Request

Customization : Available | Customized Request

Stock : 1PC

MOQ : 1PC

Contact Now

Industrial On-line Environmental Monitoring Laser Gas Analyzer
Explosion Proof Industrial Laser Gas Analyzer for Hazardous Gas Detection Explosion Proof Industrial Laser Gas Analyzer for Hazardous Gas Detection
Explosion Proof Industrial Laser Gas Analyzer for Hazardous Gas Detection

>>>Product Description

The KF200 Series Laser Gas Analyzer is developed aiming at industrial on-line analyzing, and online environmental monitoring. Based on the semiconductor laser absorption spectroscopy (DLAS) technology, it is developed with features of an integrated design and high level of integration.

With various types of the KF200 series laser gas analyzer, including in-situ probing type, by-pass type, multi-channel and disc-mounted type, etc., gases like O2, CO, NH3, CO2, CH4, H2O, HC, HF, etc., can all be analyzed. The concentration analyzing of target gases includes the macro-analysis and micro-analysis.


>>>Technical Characteristics
1. Adopting the DLAS technology, the in-situ online gas analyzing
2. Double proof probe design, without positive pressure purge, no additional data processing unit, simple compact structure, high reliability
3. Using high-power lasers, no fiber coupling, anti-hash working conditions (such as excessive dust condition)
4. Using patented technology of spot light path adjustment, easy for on-site installation

>>>Technical Specification
Measurement Principle Tunable Laser Absorption Spectroscopy(TDLAS)
Technical Data linearity error ≤±1%F.S.
Span drift ≤±1%F.S./6 months
Repeatability ≤1%F.S.
calibration period ≤1 time/6 month
Explosion-proof Grade Ex d IIC T6
Protection levels IP65
Response Time Warming-up time ≤15 min
Response time(T90) ≤1s
Interface Signals Analog outputs 2-wire 4-20mA signal output(Isolated, maximum load 750Ω)
Analog inputs 2-way 4-20mA input( temperature-pressure compensation)
digital outputs RS485/RS232/GPRS/Bluetooth
Relay output 3-wire relay(24V,1A)
Operating Conditions Ambient temperature -30ºC~+60ºC
Gas jet 0.3~0.8MPa Industrial nitrogen inlet and purification
instrument gases etc.
Power 220VAC,power is base on specific configuration
Installation Installation Method Sampling probe is mounted in the flue / pipe,system
is installed nearby

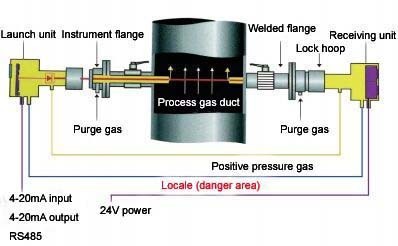

>>>Main Process Line
Explosion Proof Industrial Laser Gas Analyzer for Hazardous Gas Detection

>>>Gas Detection Limits
Detection Gas Type Detection Limit Detection range
O2 0.01%Vol. (0-1)%Vol., (0-100)%Vol.
CO2 10 ppm (0-1000)ppm,(0-100)%Vol.
H2S 20 ppm (0-2000) ppm, (0-100)%Vol.
HCl 0.1 ppm (0-50) ppm,(0-100)%Vol.
NH3 0.1 ppm (0-10) ppm, (0-100)%Vol.
C2H2 0.1ppm (0-10) ppm, (0-100)%Vol.
CO 10 ppm (0-1000)ppm, (0-100)%Vol.
H2O 0.3 ppm (0-50)ppm, (0-100)%Vol.
HF 0.02 ppm (0-5)ppm, (0-10000) ppm
HCN 0.3 ppm (0-30)ppm, (0-1)%Vol.
CH4 0.4 ppm (0-40)ppm, (0-100)%Vol.
C2H4 0.6 ppm (0-60)ppm, (0-100)%Vol.
Remark1:The test conditions for 1m optical path, the gas pressure 1bar, gas temperature 300K
Remark2:By increasing the optical path, proportionally lower detection limit

>>>OEM
Customize producta are also available,pls feel free to contact me for more detailes.

>>>Company Information
Explosion Proof Industrial Laser Gas Analyzer for Hazardous Gas Detection

Nanjing KELISAIKE is one of the largest safety equipment manufactures, possesing the most complete production range and specifications in the safety equipment industry of mainland China. Nanjing KELISAIKE was founded in 2004, including three subsidiaries in Beijing, Xi'an and Xinjiang, and more than 30 domestic sales service centers, with total registered capital of 5.16 million Yuan. Standard products and services cover the portable gas detector, fixed gas transmitter, wall-mounted gas detector, gas detector control unit, air breathing apparatus etc. Also Nanjing KELISAIKE is an experienced factory for OEM service, providing professional design and construction of the customize products. The products are widely used in fields of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.
Nanjing KELISAIKE has passed IS9001 International Quality System Certification, which ensures all products' excellent performance and competitive prices.
KELISAIKE Faith
People-oriented and technology-innovated
KELISAIKE Principle
Quality first, integrity-based

>>>Our Services
1.The inquiry and question will be replied within12hours
2.High quality with competitive price
3.Good after sales service
4.Accept OEM
5.One of the most professional safety equipment manufacture with a very good and trained team

>>>FAQ
1.How about the Delivery time?
Samples will be prepared within 15 Days after 100% T/T in advance payment. QTY order will be delivered in 30 days.
2.What kind of payments does KELISAIKE support?
T/T, L/C, Western Union, Cash are accepted.
3.What's the MOQ?
Generally speaking, the MOQ is 5PCS, but we also can provide you samples for quality inspection.
4.Do you charge for the samples?
According to our company policy,we just charge the samples based on EXW price.
5.Can you produce according to customers' design?
Suce, we are professional maunfacturer, OEM is welcome
